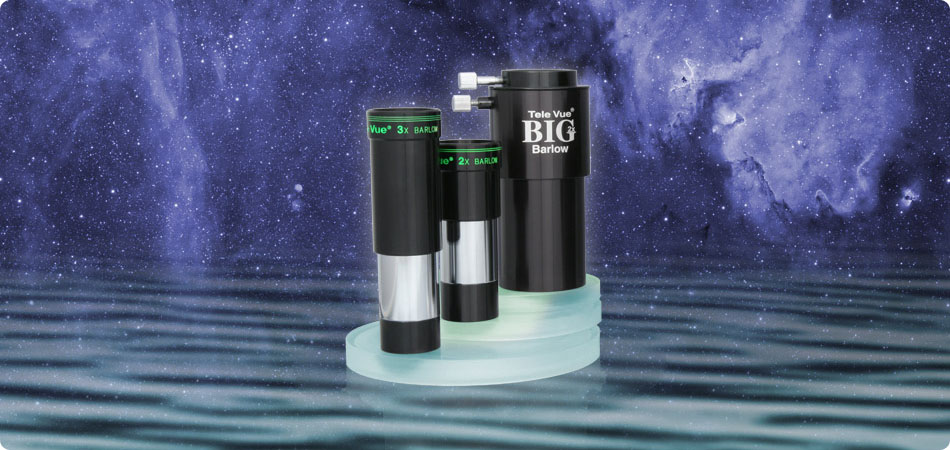

Tele Vue Barlows

Concept: I originally designed the Tele Vue Barlow line to complement the high performance of our eyepieces. Only 2 elements of high index glass were required to reduce all aberrations to well below the airy disc in an f/4 system. It has taken a good 15 years, but I think we're finally laying to rest the popular myth of the "degrading Barlow." In a 1997 Sky & Telescope review, Terrence Dickenson wrote "...Technology has erased the old objections. A modern Barlow will not degrade your telescope's optics. Anyone telling you otherwise is using outdated information. Moreover, the highly regarded Nagler eyepieces and their clones have built-in Barlows - ample evidence that the lens is not some detrimental intruder." Thanks Terry, I couldn't agree more. — Al Nagler

Properly designed Barlows do wonderful things: They amplify power, slow the telescope's f/# (improving eyepiece sharpness), and give designers the opportunity to compensate for eyepiece aberrations.

Tele Vue Barlows use multi-coated high index glasses for optimum aberration correction, exceptional contrast with virtually no light loss. Observed performance is aberration free, even when tested with f/4 scopes. They even improve our competitor's eyepieces and telescopes!

Tele Vue Quality
Compromise image quality in any part of the optical chain and you've compromised every part! Tele Vue product design and execution deliver consummate satisfaction. Every Tele Vue Barlow must pass the same rigorous f/4, full field testing as all our eyepieces. All Tele Vue Barlows now use brass clamp rings for secure, non marring holding of eyepieces and accessories.

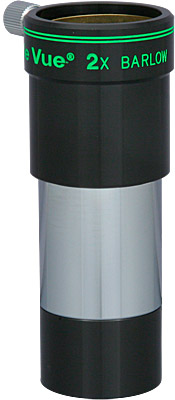

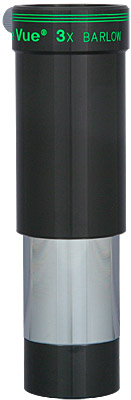

1¼"Barlows
Offered in 2x and 3x magnifications, these 1¼" Barlows perform identically. Simply choose either or both based on your eyepiece collection. Features include parfocal-ization, 1¼" filter threads, captive lock screws that won't fall out and full multicoatings.

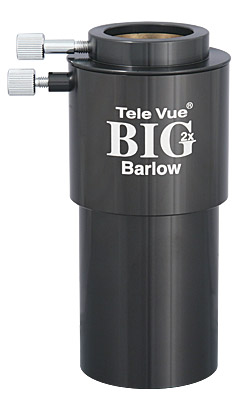

2" Big Barlow
Offered in a 2x magnification, the Big Barlow is ideal for Newtonian scope owners. It will be parfocal with both 2" and 1¼" eyepieces in this application. Features include 1¼" eyepiece adapter, threads for 48mm filters, captive lock screw and full multi-coatings.

Note: The Big Barlow is not recommended for use with 2" diagonals because it's length prevents it from being parfocal. With some telescopes, focus might not be reached, particularly when the interface lens is also used with it. A far better approach with no potential problems in any scope or with any eyepieces is to use the 2" 2x Powermate (PMT-2200). See the Powermates page for a discussion of Powermates vs. Barlows.

Specifications
Barlows (size/weight-lbs)
2x Barlow 1¼" / 0.30
2x BIG Barlow 2" w/1¼" adapter / 0.75
3x Barlow 1¼" / 0.40

Some items that are showing as in stock are in stock at our holding warehouses, not at the shop. To double check the stock levels at the shop, please contact us on 01909774369 or sales@rothervalleyoptics.co.uk.

The delivery times for most items is 1 - 2 days but again, please double check stock levels on important orders before placing an order via the website.

The delivery costs for courier next day are for mainland UK only. If you live in the Scottish Highlands/Islands, Channel Islands or Northern Ireland, then a shipping surchage will apply. please contact us for prices. Smaller items can still go 1st class via Royal Mail.

Please note that if you are wanting to take advantage of our Saturday and Sunday timed services or next day pre 12 or pre 10:30 services, you MUST check that the stock is here at the shop before placing orders. Also, orders using the Saturday and Sunday services must be placed before 1pm the previous working day. Also, please remember to check that the stock is here at the shop before placing orders. If the stock is not at the shop, we won't be able to ship on any of the timed services.

Please note International customers will need to contact us for a shipping price prior to ordering via the website. We don't ship all items internationally. It is at our discretion what we ship outside of the UK. This all depends on the size and weight of the items. Please get in touch with us for any postage costs. Please note we do NOT ship telescopes or heavy items outside of the UK. This is due to massive postage costs and problems regarding returns.

If you have any questions regarding stock levels or delivery, please get in touch.

Zygo Interferometer Testing For ED Refractor Telescopes!

We are extremely pleased to announce our Zygo Interferometer is now installed and ready for use! Our experienced staff can test refractor lenses up to 120mm aperture and provide a comprehensive 2 page report showing the optical quality and Strehl ratio, plus much more information. We are using the very latest Zygo MX software to provide a more detailed report compared to other standard reports.

The interferometer is essentially a measuring instrument. Within the interferometer is a calibrated laser that is pointed through the optical test surface, then onto a high quality reference sphere, then back through the test subject then to an internal camera which gives us the measurement on the screen. From this, we can adjust the position of the test optic and the reference sphere to obtain a perfectly calibrated system. The more central the laser to the test optic and then on return, the better and more accurate reading and measurement we can take. This takes a lot of adjustment to get the best results from the optical surface. Once the measurement has been taken, we are provided with a series of results that show the optical quality of the surface plus other information. Continue reading for an explanation of the individual values and you can also see a test report that was done on one of our RVO Horizon 60 OTAs.

We are offering certain telescopes with a Zygo test at an extra cost. Mainly ED doublets and triplets. All available telescopes with a Zygo test report are listed here. Just select Zygo Test Report from the drop down box at the top of the listing and we will test the optics in house and provide a full 2 page report with your scope. This will show you the optical quality of your telescope optics. We can also offer this service on your refractor telescope. Please get in touch for more details about this.

At Rother Valley Optics, one thing we pride ourselves on is customer service and quality of our equipment. When we test your telescope, we will ensure that it is of the highest quality otherwise, we will reject the scope under our strict quality control and test another model for your peace of mind. One of the main values to look at when testing a refractor is the Strehl ratio. The higher this number, the higher quality lens you have. At Rother Valley Optics, we will guarantee the highest possible Strehl ratio for your telescope.  We will aim to provide 0.95 Strehl or higher on Takahashi, RVO Horizon, William Optics and many more! Generally, the higher the Strehl ratio, the lower the Astigmatism and Coma meaning a better image quality from your instrument.

Other measurements such as the PV and RMS are important too. With these measurements, the lower the number the better as it shows less curvature on the lens. The flatter an optical lens, the better it will perform. The PV rating (Peak To Valley) is a measurement from the highest point (Peak) to the lowest point (Valley). From this we get the RMS (Root, Mean, Square). This is a similar figure to the PV and measured exactly the same way. The RMS is basically an average height difference from the PV so again, the lower the better. As you can see form the example below, we measured an RMS of just 0.027 wave which is a very good value.

We also measure the Power with our systems which is essentially the error from the reference sphere to the test optic. The reference sphere we use on our system is a very high quality sphere so the closer to zero the Power, the less error between the 2 elements thus ensuring a higher quality optical surface.

You will also see some more values such as Astigmatism and Coma. Again, these are measured by the interferometer when we take measurements of the optical surface after adjustment. These are values which ideally would be at 0 but as our test optics are all curved lenses, there will always be astigmatism and coma present. The lower the number, the less of these aberations you will effectively see but with most refractors, you can buy field flatteners which will compensate for the coma anyway. The astigmatisms value is explaining the error between the symmetrical curvature of the lens. Basically, no lens will be perfectly symmetrical, the lower the astigmatism, the more symmetrical the lens surface is.

Once the Zygo test report has been completed, the optical alignment is thoroughly tested and tuned to ensure they are spot on before they leave us.

All available telescopes are on the website at the link below and ones we've tested already that are available straight away are also listed.

https://www.rothervalleyoptics.co.uk/zygo-tested-refractors.html

Here is an example of the test what we provide. This was a test on one of our Horizon 60 ED OTA's.
