Primaluce Lab ESATTO 2" Robotic Microfocuser

ESATTO is the new generation robotic focuser that includes motor and advanced electronics and you control with EAGLE or any Windows computer by connecting it to a USB port, or via WiFi by using the Virtual HandPad on your smartphone or tablet! The 2” version of the ESATTO 2" has 51mm free aperture, 15mm of draw tube travel, 5kg load capacity and incredible resolution of 0,04 micron per step. And you can also expand ESATTO features by adding the ARCO robotic camera rotator!

Wanting to change your stock focuser because it isn’t sturdy enough and lacks precision? Do you want to improve the internal focuser of your SCT telescope? ESATTO is the next generation robotic focuser for telescopes, specifically designed for astrophotography but, thanks to specific technologies developed by PrimaLuceLab, also works extremely well for visual use. Forget about external controllers and cumbersome hand pads - ESATTO is the ALL-IN-ONE focuser that has all the features you’ve dreamed of in a compact, sturdy focuser design.

ESATTO 2” robotic focuser - main features:
- Crayford style focuser with 18 ball bearings, specially designed for very high load capacity (up to 5 kgs) with no flexure
- Low profile design with only 67mm thickness.
- 15mm focuser travel with an incredible resolution of 0.04 microns per step!
- Special adapters to easily connect to many different telescopes.

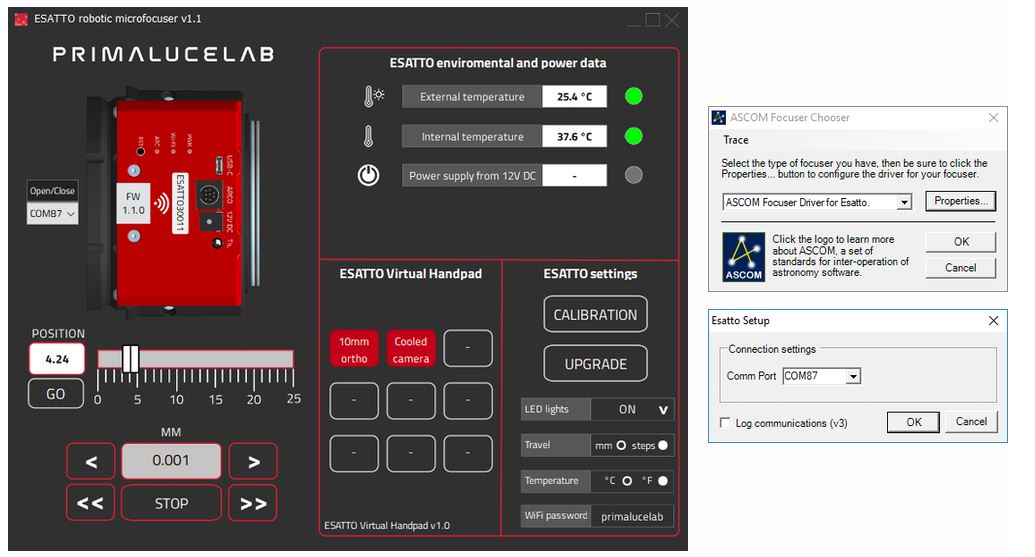

- Remotely controlled from EAGLE or any Windows computer, with dedicated control software or ASCOM drivers.

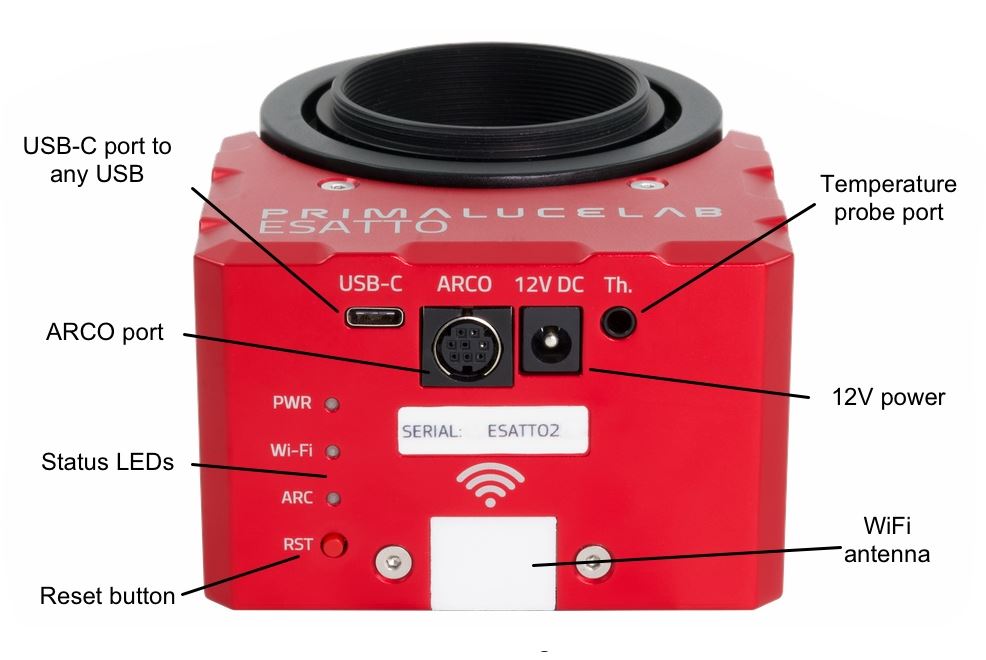

- USB-C connector offering greater reliability and can be connected to any USB type port thanks to the included cable.
- Remote control with WiFi from any smartphone, tablet or computer and ESATTO Virtual HandPad app also for visual use!
- M42x0.75 and M56x0.75 threads with stop ring on the camera side to rotate and keep the camera in the optical axis.
- ARCO port to easily connect the ARCO camera rotator to the ESATTO without the need for additional data or power cables.

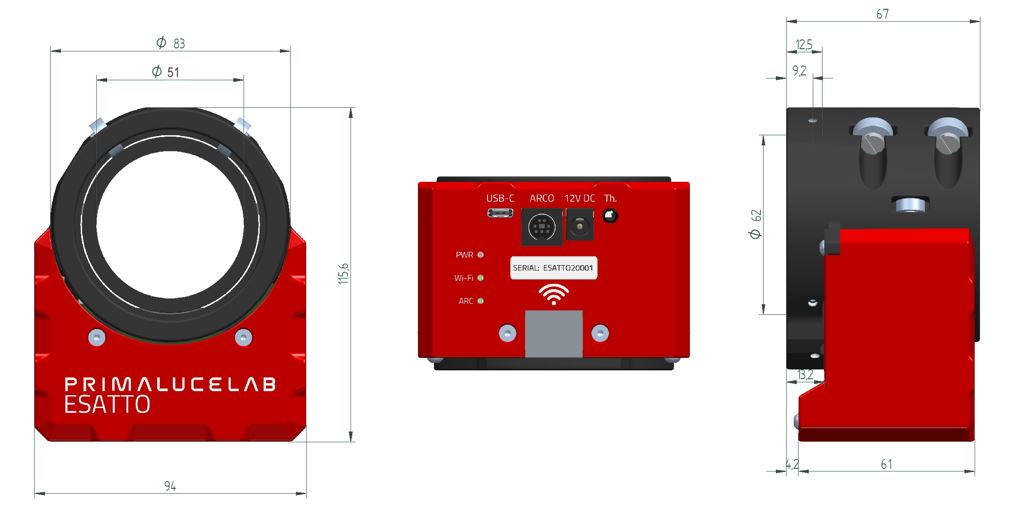

The best focuser mechanics and electronics in a compact body
The new ESATTO robotic microfocuser was born from our extensive experience in astrophotography and engineered with the uncompromising quality of PrimaLuceLab. We wanted to create the best motorized focuser in the world, with all the latest technical features, resulting in a compact and beautiful design only 67mm of thick.

Designed to give your telescopes the best performances for astrophotography
The special Crayford design with 18 ball bearings allows ESATTO 2” to have an impressive 5 kgs (11 lb) payload capacity with the focusing smoothness that is required by modern astrophotography techniques (eg. autofocusing with V-curve). ESATTO 2” has a draw tube with 51mm of free aperture, and 15mm of travel, offering to an incredible read resolution of 0.04 microns per step!

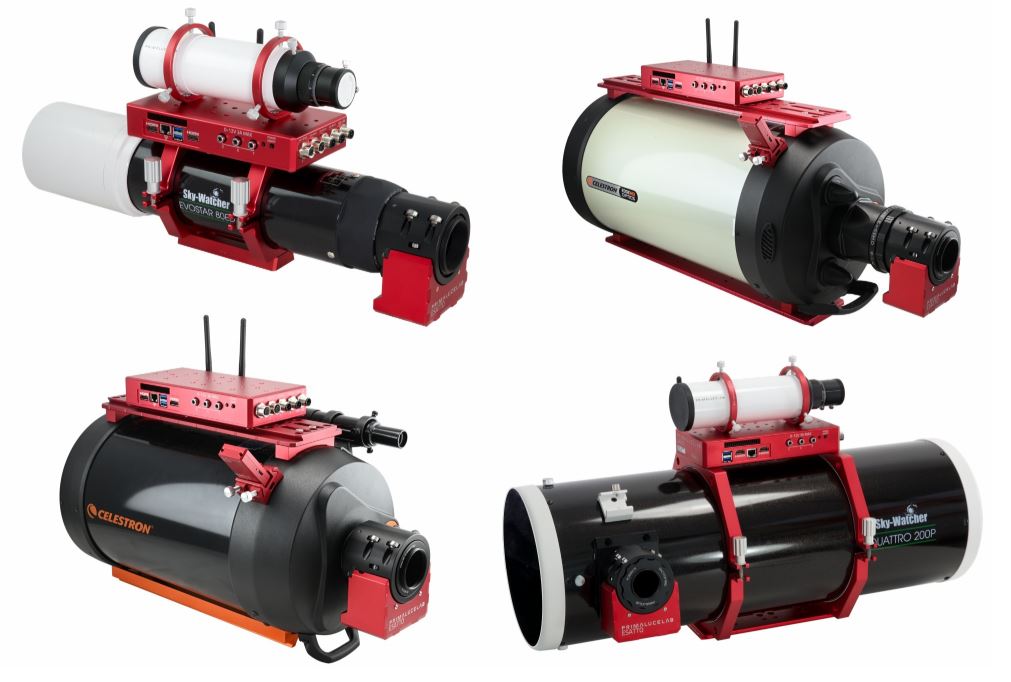

Many adaptors available to connect to many telescopes
You don’t need to worry on how to connect ESATTO to your telescope - You can choose among the many models and adaptors available! You can easily connect ESATTO 2” to telescopes like Schmidt-Cassegrains, Aplanatic Schmidt-Cassegrains, refractors, Cassegrains, Newtonians, and more! ESATTO truly is the universal focuser and if you can’t find an adaptor for your telescope, just contact us!

Designed for remote control via a USB-C port from the EAGLE or from any Windows computer with a standard USB port
ESATTO has been specifically designed for easy remote operation in order to let your telescope take advantage of all the latest technology in astrophotography. ESATTO comes with a sturdy USB-C port (which you can connect to any USB type port thanks to the cable included in the box) to connect to EAGLE or any Windows computer, and control it via the provided ESATTO software or ASCOM driver. When connected to one of the USB 3.0 ports on the EAGLE (or any USB ports of Windows computers capable of at least 1A), the ESATTO can be powered and controlled via the one cable!

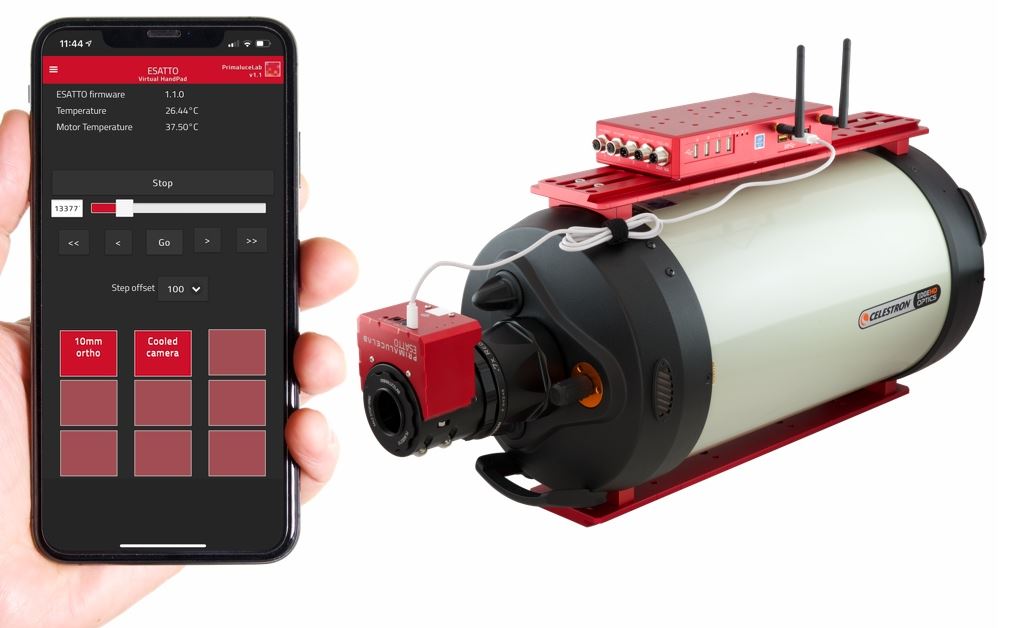

Designed for remote control via WiFi, from any smartphone, tablet or computer via the ESATTO Virtual HandPad app
ESATTO has built-in WiFi remote control capability so you can control it from any smartphone, tablet or computer! Just connect your device to the WiFi network of ESATTO and start the app - You will be able to control the focuser by using the dedicated ESATTO Virtual HandPad app. Thanks to convenient preset settings, you can easily record and move the focuser to specific predetermined positions - Great for visual use! WiFi control works even if ESATTO is also connected to a computer so you can control it simultaneously from 2 devices.

Focuser draw tube with M56x0.75 thread and stop ring for a perfect camera connection
We know that a perfect focuser is nothing without a solid connection to the camera. That's why, instead of using a normal 2" visual back, ESATTO 2" offers a M56x0.75 male thread (to let you attach SkyWatcher/Orion reducers for ED 80, 100 and 120 refractors) and, through a complete series of optional camera adapters with stop ring, it allows you to directly connect the most common DSLR, mirrorless and CCD or CMOS cooled cameras directly at the focuser. The stop ring allows you to lock the camera at a precise angle to better frame the object to be photographed. The stop ring adapters are available in many different sizes: this way you can connect, with maximum rigidity and comfort, any camera or accessory.

Connect with a single cable to ARCO to remotely control also your robotic camera rotator
ESATTO includes a special port allowing ARCO, the robotic camera rotator, to be directly connected. With ARCO, you can remotely control the rotation angle of your camera in order to achieve perfect framing of the object you want to record. ESATTO and ARCO are designed to work together - You will need only one short interconnect between the two!

Some items that are showing as in stock are in stock at our holding warehouses, not at the shop. To double check the stock levels at the shop, please contact us on 01909774369 or sales@rothervalleyoptics.co.uk.

The delivery times for most items is 1 - 2 days but again, please double check stock levels on important orders before placing an order via the website.

The delivery costs for courier next day are for mainland UK only. If you live in the Scottish Highlands/Islands, Channel Islands or Northern Ireland, then a shipping surchage will apply. please contact us for prices. Smaller items can still go 1st class via Royal Mail.

Please note that if you are wanting to take advantage of our Saturday and Sunday timed services or next day pre 12 or pre 10:30 services, you MUST check that the stock is here at the shop before placing orders. Also, orders using the Saturday and Sunday services must be placed before 1pm the previous working day. Also, please remember to check that the stock is here at the shop before placing orders. If the stock is not at the shop, we won't be able to ship on any of the timed services.

Please note International customers will need to contact us for a shipping price prior to ordering via the website. We don't ship all items internationally. It is at our discretion what we ship outside of the UK. This all depends on the size and weight of the items. Please get in touch with us for any postage costs. Please note we do NOT ship telescopes or heavy items outside of the UK. This is due to massive postage costs and problems regarding returns.

If you have any questions regarding stock levels or delivery, please get in touch.

Zygo Interferometer Testing For ED Refractor Telescopes!

We are extremely pleased to announce our Zygo Interferometer is now installed and ready for use! Our experienced staff can test refractor lenses up to 120mm aperture and provide a comprehensive 2 page report showing the optical quality and Strehl ratio, plus much more information. We are using the very latest Zygo MX software to provide a more detailed report compared to other standard reports.

The interferometer is essentially a measuring instrument. Within the interferometer is a calibrated laser that is pointed through the optical test surface, then onto a high quality reference sphere, then back through the test subject then to an internal camera which gives us the measurement on the screen. From this, we can adjust the position of the test optic and the reference sphere to obtain a perfectly calibrated system. The more central the laser to the test optic and then on return, the better and more accurate reading and measurement we can take. This takes a lot of adjustment to get the best results from the optical surface. Once the measurement has been taken, we are provided with a series of results that show the optical quality of the surface plus other information. Continue reading for an explanation of the individual values and you can also see a test report that was done on one of our RVO Horizon 60 OTAs.

We are offering certain telescopes with a Zygo test at an extra cost. Mainly ED doublets and triplets. All available telescopes with a Zygo test report are listed here. Just select Zygo Test Report from the drop down box at the top of the listing and we will test the optics in house and provide a full 2 page report with your scope. This will show you the optical quality of your telescope optics. We can also offer this service on your refractor telescope. Please get in touch for more details about this.

At Rother Valley Optics, one thing we pride ourselves on is customer service and quality of our equipment. When we test your telescope, we will ensure that it is of the highest quality otherwise, we will reject the scope under our strict quality control and test another model for your peace of mind. One of the main values to look at when testing a refractor is the Strehl ratio. The higher this number, the higher quality lens you have. At Rother Valley Optics, we will guarantee the highest possible Strehl ratio for your telescope.  We will aim to provide 0.95 Strehl or higher on Takahashi, RVO Horizon, William Optics and many more! Generally, the higher the Strehl ratio, the lower the Astigmatism and Coma meaning a better image quality from your instrument.

Other measurements such as the PV and RMS are important too. With these measurements, the lower the number the better as it shows less curvature on the lens. The flatter an optical lens, the better it will perform. The PV rating (Peak To Valley) is a measurement from the highest point (Peak) to the lowest point (Valley). From this we get the RMS (Root, Mean, Square). This is a similar figure to the PV and measured exactly the same way. The RMS is basically an average height difference from the PV so again, the lower the better. As you can see form the example below, we measured an RMS of just 0.027 wave which is a very good value.

We also measure the Power with our systems which is essentially the error from the reference sphere to the test optic. The reference sphere we use on our system is a very high quality sphere so the closer to zero the Power, the less error between the 2 elements thus ensuring a higher quality optical surface.

You will also see some more values such as Astigmatism and Coma. Again, these are measured by the interferometer when we take measurements of the optical surface after adjustment. These are values which ideally would be at 0 but as our test optics are all curved lenses, there will always be astigmatism and coma present. The lower the number, the less of these aberations you will effectively see but with most refractors, you can buy field flatteners which will compensate for the coma anyway. The astigmatisms value is explaining the error between the symmetrical curvature of the lens. Basically, no lens will be perfectly symmetrical, the lower the astigmatism, the more symmetrical the lens surface is.

Once the Zygo test report has been completed, the optical alignment is thoroughly tested and tuned to ensure they are spot on before they leave us.

All available telescopes are on the website at the link below and ones we've tested already that are available straight away are also listed.

https://www.rothervalleyoptics.co.uk/zygo-tested-refractors.html

Here is an example of the test what we provide. This was a test on one of our Horizon 60 ED OTA's.
