Askar FRA500 90mm f/5.6 Quintuplet Astrograph OTA

Sharpstar Optics introduces Askar FRA500 astrograph, which is the youngest among the well-known FRA- family, to our customers.
Compared with its siblings, the 500mm-focal-length refractor has an aperture size of 90mm (f/5.6), so Askar FRA500 can better fit into the scenarios of deep-sky imaging than Askar FRA400.
Besides, its more lightweight and compact than Askar FRA600, which makes it a great choice for out-door observation or astrophotography.

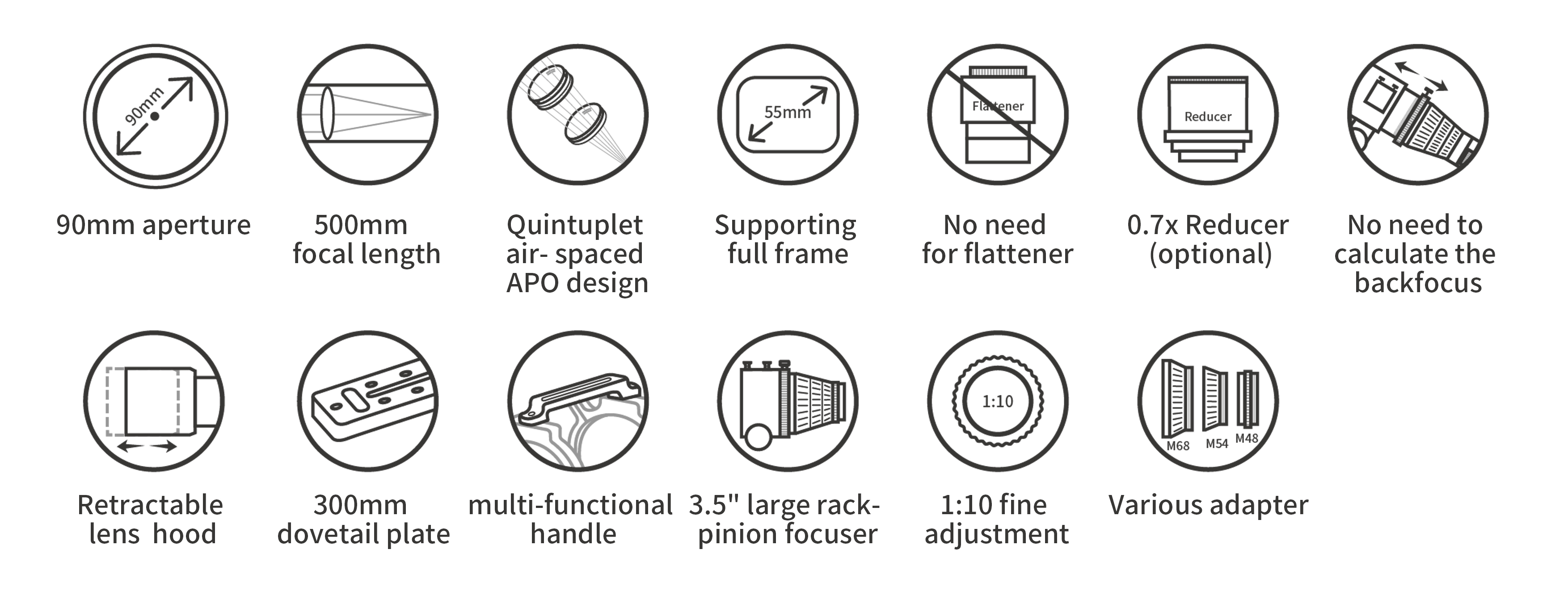

Askar FRA500 has inherited the legacies of superior FRA- series designing. It boasts a quintuplet air-spaced APO optical structure, a “three plus two” Petzval lens combination. The front lens group consists of three lenses (including two pieces of ED glass) for excellent correction of aberrations. The posterior group is composed of two lenses separated by small space which is able to provide fine sharpness across the whole image. You may barely detect any blurry star at the edge of the image. FRA500 supports an image circle of amazing 55mm, much larger than the standard 44mm full-frame image circle. Its special back-focus design frees users from calculating confusing back-focus distance or rummaging around for a proper spacer. What you need to focus on is just to make your target stay in focus.

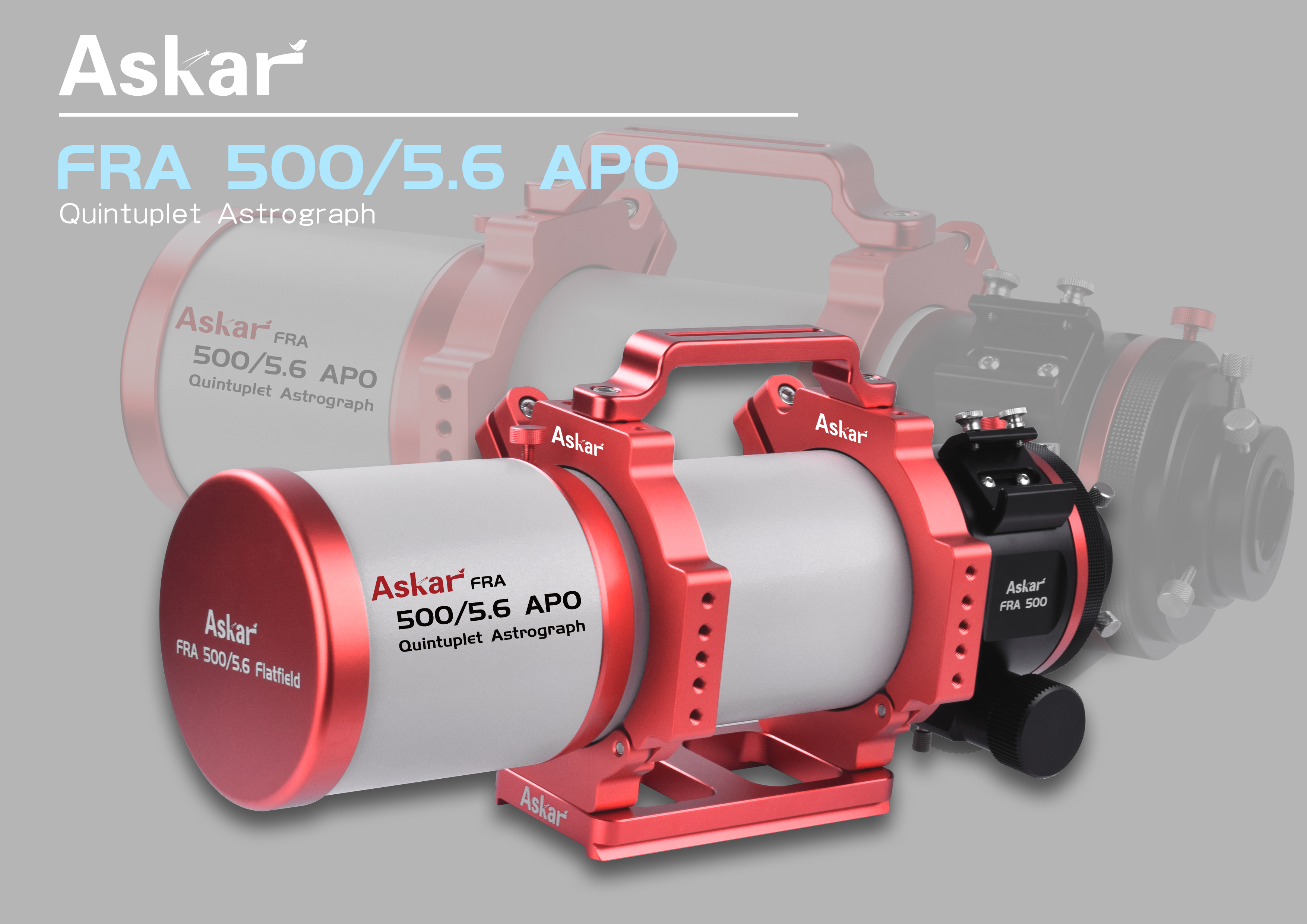

Askar FRA500 is typically a wonderful mix of pragmatism and aesthetics. The astrograph shows smooth lines and a sound layout of components. From the front, the Askar FRA500 has an impressive dew shield decorated with a classic bright-red bezel ring. The total length of FRA500 is 452mm when the dew shield is stretched out and 410mm when contracted back. At the tail end of the astrograph locates a 3.5" massively-built focuser with dual-speed hand knobs (twin knobs for coarse adjustment and one 1:10 fine adjustment knob), which is of great use in real observation or astrophotography.

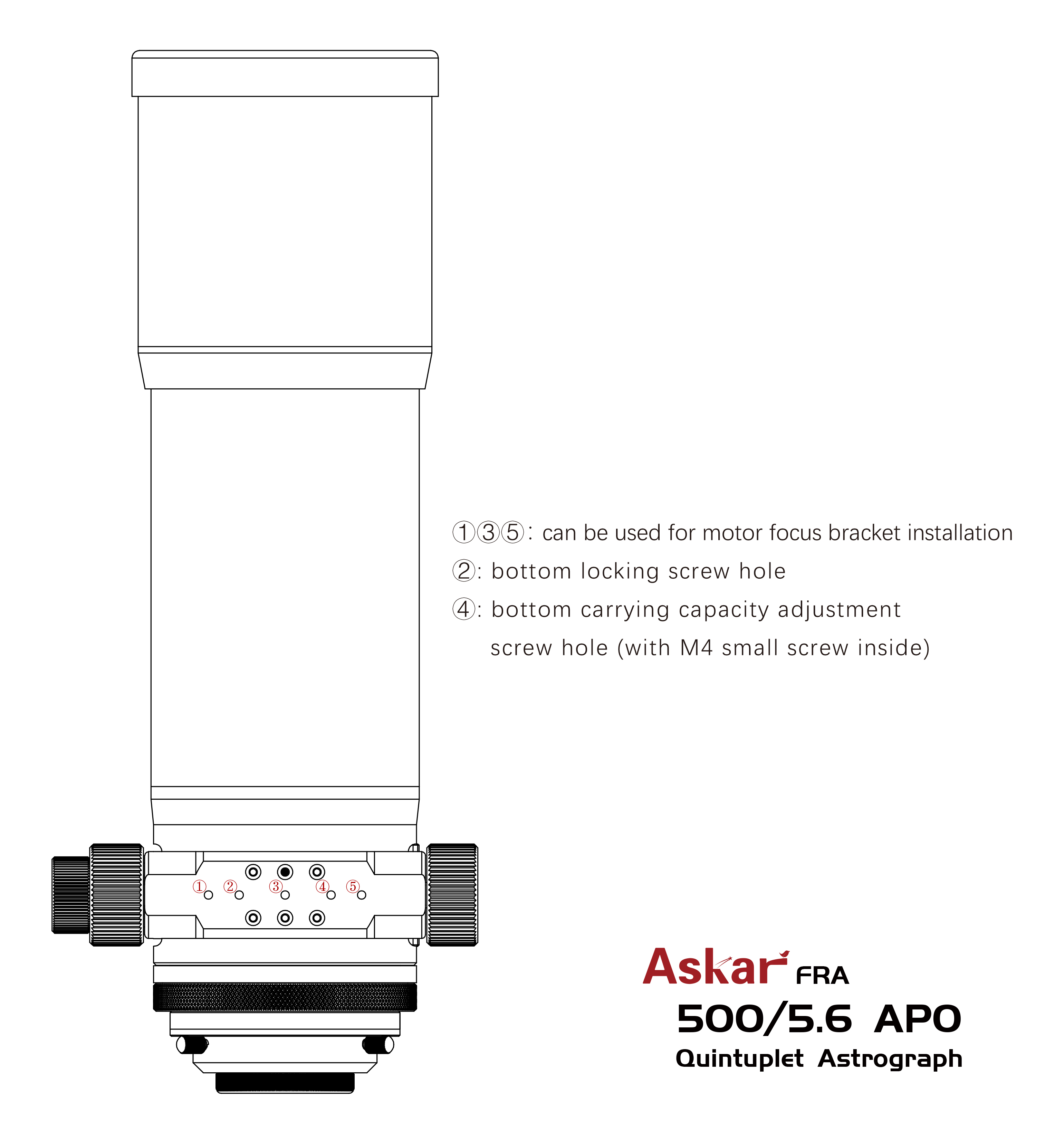

The astrograph wears smooth coating and is evenly finished. The graduation inside of the focuser is quite clear and easily readable. The focuser is tough and solid, and on the left side of it, there is a standard finder base with a silver thumb screw. So the FRA500 can piggyback carry finders, guiders or other potential astronomy accessories.

Askar FRA500 comes also with a pair of sought-after tube rings. On the top of the tube rings attached a handle and at the bottom, there is an Askar Losmandy-style dovetail plate. The combination of milk-white main tube and dew shield together with a high-gloss piano-black focuser makes the optical tube assembly calm and deep which is offset by the bright red decorative ring and tube rings.

The Askar FRA500 is 410mm long and weighs about 4kg , so it’s quite convenient for users to carry around or mount on an EQ mount. It’s particularly suitable for astronomy enthusiasts who frequently engage in long-distance trips or out-door astrophotography.

Askar FRA500 together with the FRA- family is well received for large aperture, fast speed, delicate focusing system, unique optical design and the subsequently high-quality imaging results. Wish the Askar FRA500 be a loyal companion alongside your journey of astrophotography.

Aperture size：90mm
Focal length：500mm
Focal ratio：f/5.6
Objective lens：Quintuplet air-spaced APO (including two ED glass)
Image circle：55mm

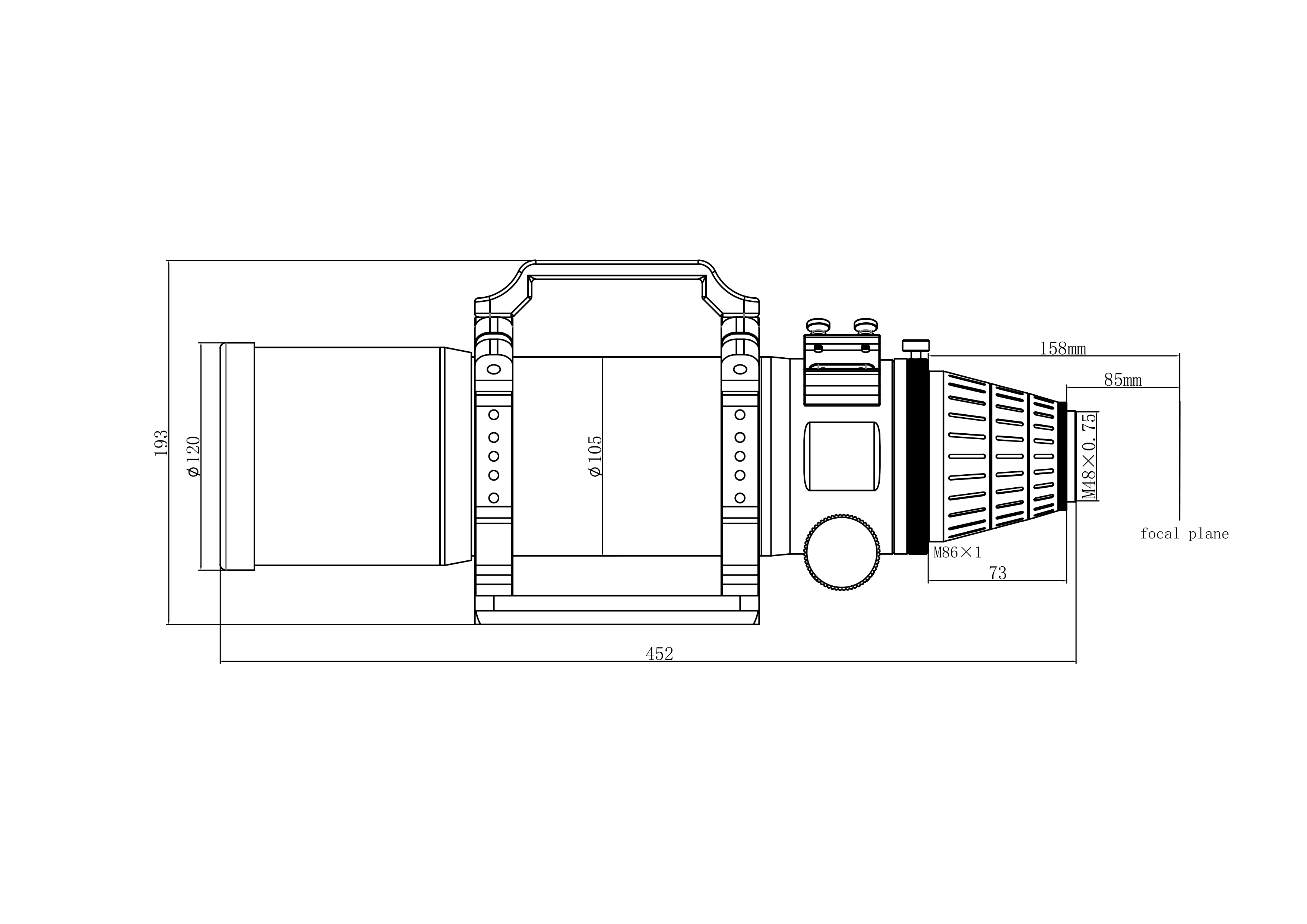

Back focus：158mm（from base of M48×0.75 thread on the conical extender to focal plane）
85mm（from base of M86×1 thread on the rotator to focal plane）
Total length：452mm（410mm when the dew shield is contracted）
Net weight：4.1kg
Gross weight：5.2kg
Rear-end thread type：M86×1
Conical adapter：M48×0.75
Package items：an FRA500 OTA, a pair of tube rings, a handle, an Askar Losmandy dovetail plate, a conical extender, a manual

Some items that are showing as in stock are in stock at our holding warehouses, not at the shop. To double check the stock levels at the shop, please contact us on 01909774369 or sales@rothervalleyoptics.co.uk.

The delivery times for most items is 1 - 2 days but again, please double check stock levels on important orders before placing an order via the website.

The delivery costs for courier next day are for mainland UK only. If you live in the Scottish Highlands/Islands, Channel Islands or Northern Ireland, then a shipping surchage will apply. please contact us for prices. Smaller items can still go 1st class via Royal Mail.

Please note that if you are wanting to take advantage of our Saturday and Sunday timed services or next day pre 12 or pre 10:30 services, you MUST check that the stock is here at the shop before placing orders. Also, orders using the Saturday and Sunday services must be placed before 1pm the previous working day. Also, please remember to check that the stock is here at the shop before placing orders. If the stock is not at the shop, we won't be able to ship on any of the timed services.

Please note International customers will need to contact us for a shipping price prior to ordering via the website. We don't ship all items internationally. It is at our discretion what we ship outside of the UK. This all depends on the size and weight of the items. Please get in touch with us for any postage costs. Please note we do NOT ship telescopes or heavy items outside of the UK. This is due to massive postage costs and problems regarding returns.

If you have any questions regarding stock levels or delivery, please get in touch.

Zygo Interferometer Testing For ED Refractor Telescopes!

We are extremely pleased to announce our Zygo Interferometer is now installed and ready for use! Our experienced staff can test refractor lenses up to 120mm aperture and provide a comprehensive 2 page report showing the optical quality and Strehl ratio, plus much more information. We are using the very latest Zygo MX software to provide a more detailed report compared to other standard reports.

The interferometer is essentially a measuring instrument. Within the interferometer is a calibrated laser that is pointed through the optical test surface, then onto a high quality reference sphere, then back through the test subject then to an internal camera which gives us the measurement on the screen. From this, we can adjust the position of the test optic and the reference sphere to obtain a perfectly calibrated system. The more central the laser to the test optic and then on return, the better and more accurate reading and measurement we can take. This takes a lot of adjustment to get the best results from the optical surface. Once the measurement has been taken, we are provided with a series of results that show the optical quality of the surface plus other information. Continue reading for an explanation of the individual values and you can also see a test report that was done on one of our RVO Horizon 60 OTAs.

We are offering certain telescopes with a Zygo test at an extra cost. Mainly ED doublets and triplets. All available telescopes with a Zygo test report are listed here. Just select Zygo Test Report from the drop down box at the top of the listing and we will test the optics in house and provide a full 2 page report with your scope. This will show you the optical quality of your telescope optics. We can also offer this service on your refractor telescope. Please get in touch for more details about this.

At Rother Valley Optics, one thing we pride ourselves on is customer service and quality of our equipment. When we test your telescope, we will ensure that it is of the highest quality otherwise, we will reject the scope under our strict quality control and test another model for your peace of mind. One of the main values to look at when testing a refractor is the Strehl ratio. The higher this number, the higher quality lens you have. At Rother Valley Optics, we will guarantee the highest possible Strehl ratio for your telescope.  We will aim to provide 0.95 Strehl or higher on Takahashi, RVO Horizon, William Optics and many more! Generally, the higher the Strehl ratio, the lower the Astigmatism and Coma meaning a better image quality from your instrument.

Other measurements such as the PV and RMS are important too. With these measurements, the lower the number the better as it shows less curvature on the lens. The flatter an optical lens, the better it will perform. The PV rating (Peak To Valley) is a measurement from the highest point (Peak) to the lowest point (Valley). From this we get the RMS (Root, Mean, Square). This is a similar figure to the PV and measured exactly the same way. The RMS is basically an average height difference from the PV so again, the lower the better. As you can see form the example below, we measured an RMS of just 0.027 wave which is a very good value.

We also measure the Power with our systems which is essentially the error from the reference sphere to the test optic. The reference sphere we use on our system is a very high quality sphere so the closer to zero the Power, the less error between the 2 elements thus ensuring a higher quality optical surface.

You will also see some more values such as Astigmatism and Coma. Again, these are measured by the interferometer when we take measurements of the optical surface after adjustment. These are values which ideally would be at 0 but as our test optics are all curved lenses, there will always be astigmatism and coma present. The lower the number, the less of these aberations you will effectively see but with most refractors, you can buy field flatteners which will compensate for the coma anyway. The astigmatisms value is explaining the error between the symmetrical curvature of the lens. Basically, no lens will be perfectly symmetrical, the lower the astigmatism, the more symmetrical the lens surface is.

Once the Zygo test report has been completed, the optical alignment is thoroughly tested and tuned to ensure they are spot on before they leave us.

All available telescopes are on the website at the link below and ones we've tested already that are available straight away are also listed.

https://www.rothervalleyoptics.co.uk/zygo-tested-refractors.html

Here is an example of the test what we provide. This was a test on one of our Horizon 60 ED OTA's.
